Product Description
Single Phase Motors are used in a variety of applications in households and small industrial sectors, where three-phase power supply is not available. Single Phase motors are classified based on the type of starting mechanism. Widely used starting mechanisms are Split Phase, Capacitor Start and Run, Capacitor Start Induction Run & Capacitor Start Capacitor Run. Depending upon the application load characteristics, mounting suitability and cooling mechanisms, we have single phase motors in various output powers, constructions and enclosures.
NEMA 56 Frame Motors
B56 frame motors are designed for general-purpose applications in MS rolled powder-coated body construction. These are available in NEMA 56 or IEC(Metric) 90 frame, foot and flange mounting arrangements. Thermal protection is optional, and UL approved motor range is also available.
Performance Features
- Compact and reliable designs suited for various applications
- Powder coated rolled sheet metal body for corrosion resistance
- TE, TEFC, DP and DPFC enclosures available
- Foot, flange, face as per IEC & NEMA standard available
- Customized mounting arrangements on request
- Highly reliable switching mechanism
- B class and F class insulation designs available
- Wide voltage designs available
- Energy efficient designs
- Sealed Ball Bearings
Specifications
| application | Wet Grinder, Surgical Pump, Paint Mixer, Vacuum Pump, Needle Vibrator, Lawn Mower, etc |
| available range | 187 W to 1500 W (4 Pole) / 187 W to 2250 W (2 Pole) / 187 W to 750 W (6 Pole) / 187 W to 750 W (8 Pole) |
| standard | IEC, IS, NEMA, OTHER |

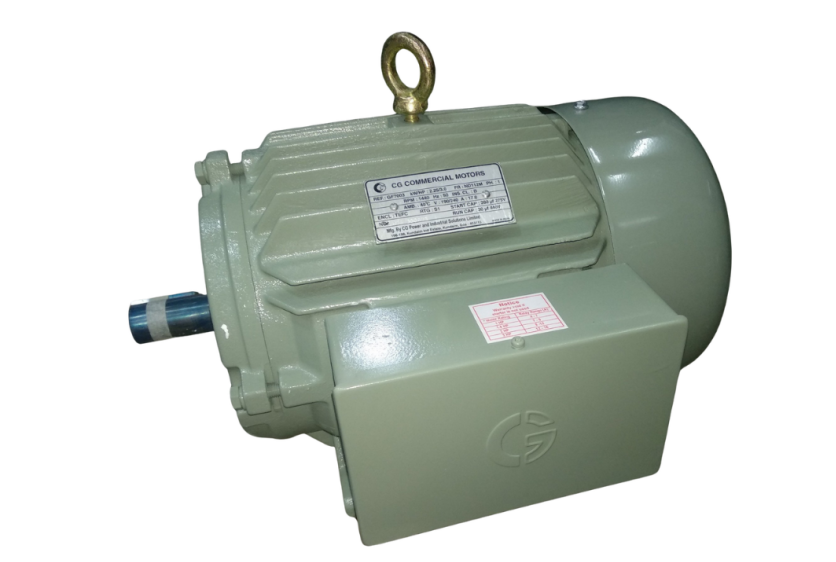

Cast Iron Frame Motors
Cast Iron Frame Motors are among the most widely used general-purpose motors. The robust and reliable design has powered rural and industrial applications for decades. These motors are offered in IEC (Metric) 80 to 160 Frame from 370 to 5500 watts in Totally Enclosed Fan Cooled construction. Flange-mounted versions are also available.
Performance Features
- Heavy duty designs with reliable OC switch and gear
- Wide voltage suitability
- Rugged construction
- Lower temperature rise
- Sealed ball bearings
- Dynamically balanced rotors
- Long life and high performance motors
- Higher power factor
Specifications
| application | Coupled Pump, Pulveriser, Rice Huller, Garage Compressor, Thresher, Floor Polisher... |
| available range | 750 W to 5500 W (4 Pole) |
| standard | IS |

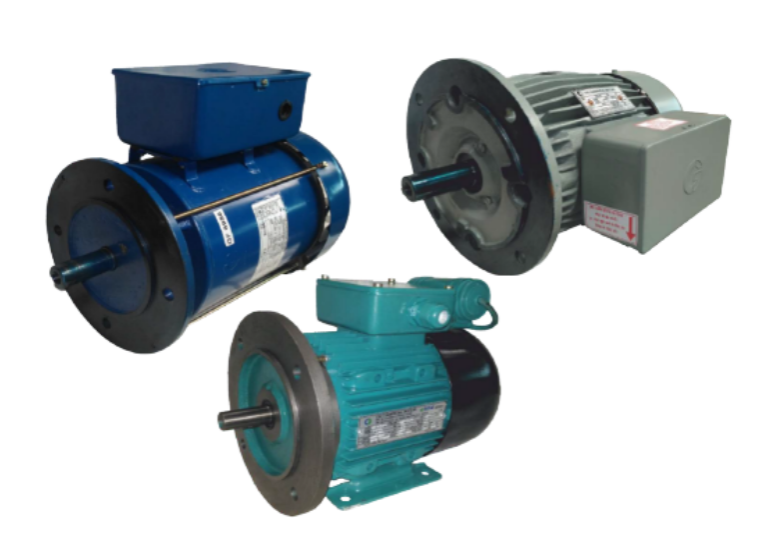

Flange Motors
CG offers a complete range of heavy-duty IEC flange-mounted motors suited for a wide variety of industrial applications. Available in sheet metal body, cast iron body, and aluminium body designs, ranging from 180W to 3700W.
Performance Features
- Motors available in Sheet Metal Body, Cast Iron, and Aluminium constructions
- Flange and Face mounting from frame 63 to 132
- Available in NEMA 48, 56, 100S frame and IEC 63 to 132
- B14 (face) mounting available; B34 and B35 on request
- Customized mounting options available
Specifications
| output power | 180W to 3700W |
| phase | Single |
| polarity | 2 and 4 pole |
| supply voltage | 230 V |
| frequency | 50 Hz |
| construction | TEFC |
| bearings | Sealed Ball Bearings |
| duty cycle | Continuous |
| circuit protection | Optional - Auto or Manual reset |
| frame | NEMA 48/56, 100S, IEC 63, 71, 81, 90, 100, 112, 132 |
| application | Gear boxes, Hydraulic packs, Pouch packing, Pump, Pulverizer |
| available range | 80 W to 3700 W, 2 pole and 4 pole |
| standard | IS |
