Product Description

CG offers wide range of low voltage Flameproof squirrel cage & Slip ring electric motors for operation in hazardous and hostile environments, ranging from 0.37 kW to 500 kW. These Flameproof Motors are licensed by a European notified body (BASEEFA) and Indian notified body (BIS/DGMS/PESO). All relevant products fully comply with the requirements of the ATEX & CE Directives.

We also offer a complete range of Squirrel Cage Motors for Gas Group IIC. These motors are manufactured under most stringent quality control norms for IIC atmosphere and are duly tested at ERTL, Kolkata and Karandikar Laboratories, Mumbai.

Performance Features

  • Standard Motors are designed for foot mounting; other mountings are also available on request.
  • Standard levels of enclosure protection for motor and terminal box is IP55, with IP56, IP65 and IP66 available on request.
  • All hazardous area motors (except for Gas Group IIC – available in TOP only) have the terminal box on the RHS as standard. Top terminal box can be offered on request.
  • Standard paint shade is anti-corrosive epoxy RAL7034 (Yellow Grey), others are also available on request.
  • The flameproof motors manufactured by CG are suitable for Temperature Class T4 as per IS/IEC 60079-1.

Accessories

  • Thermistor
  • Space Heater
  • Insulated Bearing (Frame IEC 200+)
  • Roller Bearing (Frame IEC 225+)
  • Encoder Mounting Arrangement
  • MS Canopy
  • Double Compression Cable Glands

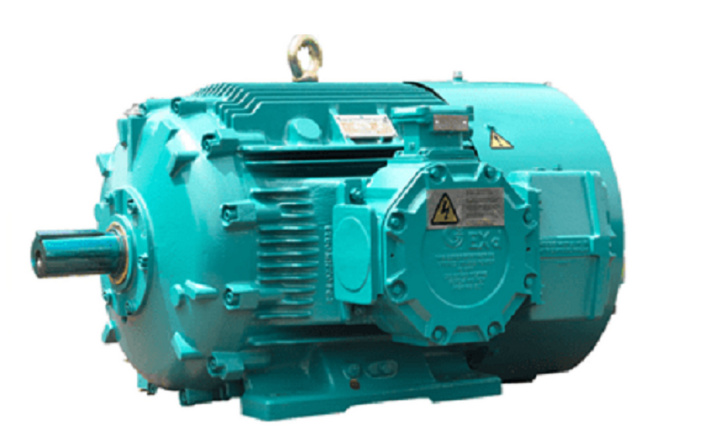

Flame Proof Motors
Flame Proof Motors

Specifications

range0.37 kW to 500 kW
frameIEC 80 to 400 in cast iron
mountingFoot / Flange / Face
poles2 to 8 (others on request)
frequency50 or 60 Hz
ambient temperature-20°C to +50°C (others on request)
protectionIP55 (others on request)
featuresComplying with ATEX/IECEx, PESO/DGMS/BIS certifications
gas groupSuitable for Gas Group I, IIA, IIB, IIC and Dust Proof IIIC
