Product Description

The increasing costs of energy calls for saving the same in all steps of manufacture. Electric Motor Driven systems used in the industrial processes consume around 70% of the energy used in the industry. Hence innovative technology has to be developed and applied to achieve highest possible efficiency levels. CG has developed Apex Series, energy efficient motors complying with latest IS12615 & IEC60034-30.

The Indian standard mentions following additional performance other than IEC60034-30

Performance Features

  • Performance requirements in addition to efficiency.
  • Breakaway torque
  • Breakaway current
  • Full load speed
  • Full load current
  • Frame size designation

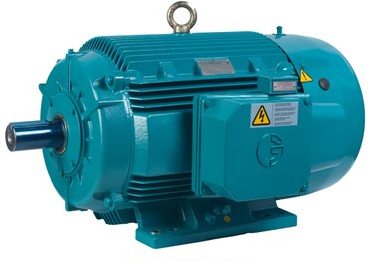

IE2 & IE3 Energy-Efficiency Motors

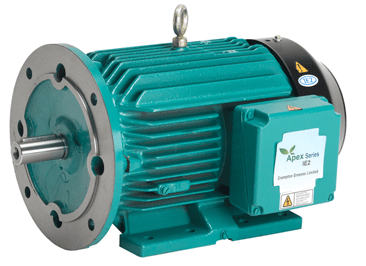

IE2 & IE3 Energy-Efficiency Motors
IE2 & IE3 Energy-Efficiency Motors

Specifications

range0.18 kW to 710 kW
frame
  • IEC 80 to 500 in cast iron
  • IEC 63 to 160 in Aluminum
  • NEMA 143 to 504 in cast iron
  • NEMA 56 to 256 in Aluminum
mountingFoot / Flange / Face
poles2 to 10 (others on request)
frequency50 or 60 Hz
ambient temperature-20°C to +50°C (others on request)
protectionIP55 (others on request)
featureInverter Compatible
